GUARD W
PARAPETTO AUTOPORTANTE

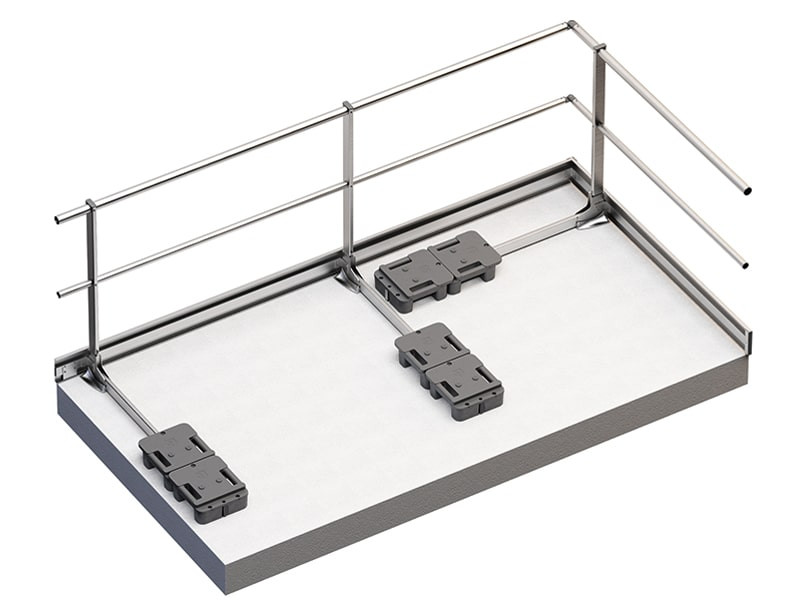

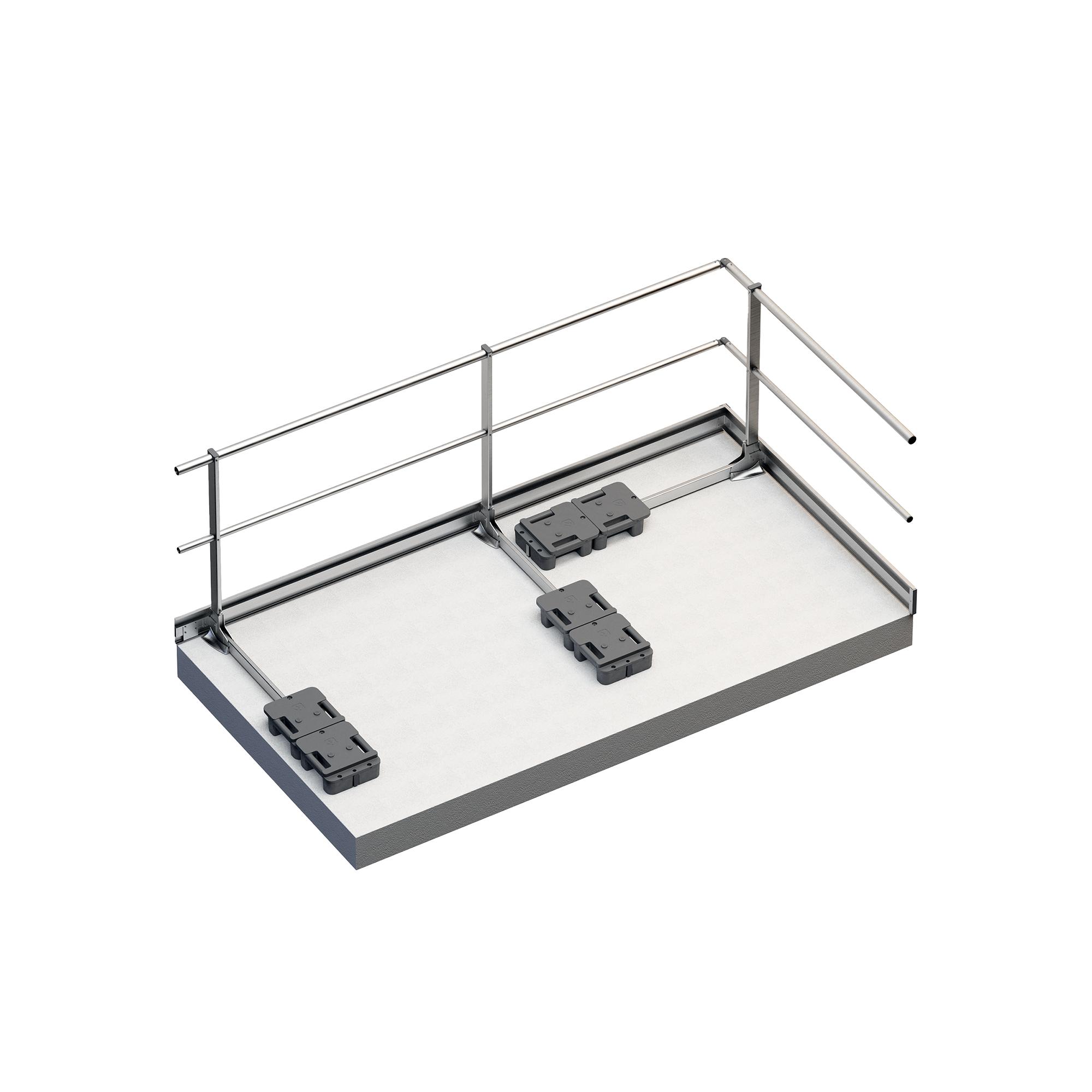

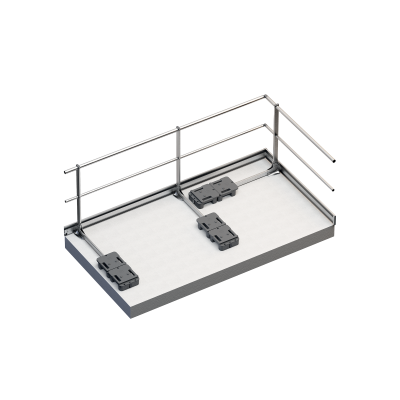

GUARD W è il parapetto autoportante che, grazie alle zavorre rivestite in plastica incluse nella fornitura, non richiede la foratura della struttura per l’installazione, preservando così lo strato impermeabilizzante.
Le zavorre ergonomiche agevolano l’installazione e il trasporto, e il montaggio è rapido e semplice. Il fissaggio dei componenti avviene ad incastro e con viti autoforanti, incluse nella fornitura. In lega di alluminio, il parapetto è straordinariamente leggero.
GUARD W, il parapetto autoportante che preserva lo strato impermeabilizzante.
Documentazione
-
Scheda Tecnica
-
Manuale d'installazione
CORRIMANI E CORRENTI INTERMEDI - GUARD W
| CODICE | descrizione | pz. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
MONTANTI - GUARD W
| CODICE | descrizione | pz. |
|---|---|---|
| RBGSUP110 | straight upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
ASSE FERMAPIEDI ED ACCESSORI - GUARD W
| CODICE | descrizione | pz. |
|---|---|---|
| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
| RBGTBW | support for toe board H = 150 mm for GUARD W | 1 |
BASI STANDARD - GUARD W
| CODICE | descrizione | pz. |
|---|---|---|
| RBGBASEW | base for self-supporting GUARD W straight with support leg | 1 |
| RBGBASEWE | locking wedge for GUARD W (spare part) | 1 |
| RBGWEIGHT | plastic counterweight 12,5 kg for GUARD W | 1 |
| RBGBASEWI | base for self-supporting GUARD W inclined with support leg | 1 |
| RBGBASEWIFCR | support leg for 25° right-hand bend inclined strut | 1 |
| RBGBASEWIFCL | support leg for 25° left-hand bend inclined strut | 1 |
ACCESSORI
| CODICE | descrizione | pz. |
|---|---|---|
| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |
| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
VITI DI FISSAGGIO - GUARD W
| CODICE | descrizione | pz. |
|---|---|---|
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR4850 | stainless steel self-drilling screw 4,8 x 50 mm | 25 |
| RBGBASEWFKIT | kit for joining RBGBASEWF and RBGBASEWFR / RBGBASEWFL | 1 |
KIT CANCELLETTI DI SICUREZZA
| CODICE | descrizione | pz. |
|---|---|---|
| RBGGATEWISUP | support for inclined strut gate | 1 |
| RBGGATE600 | safety door 500 mm height with hinges assembled L = 600 mm | 1 |
| RBGGATE1100 | safety door 500 mm height with hinges width L = 1100 mm | 1 |
SISTEMA RECLINABILE
| CODICE | descrizione | pz. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
