GUARD H
PARAPETTO FISSAGGIO ORIZZONTALE
Il parapetto GUARD H è concepito per installazione su strutture piane o solai.
Il montaggio è rapido e semplice: il fissaggio dei componenti avviene ad incastro e con viti autoforanti, incluse nella fornitura. Il parapetto è realizzato in lega di alluminio, risultando quindi straordinariamente leggero nelle fasi di installazione e trasporto.

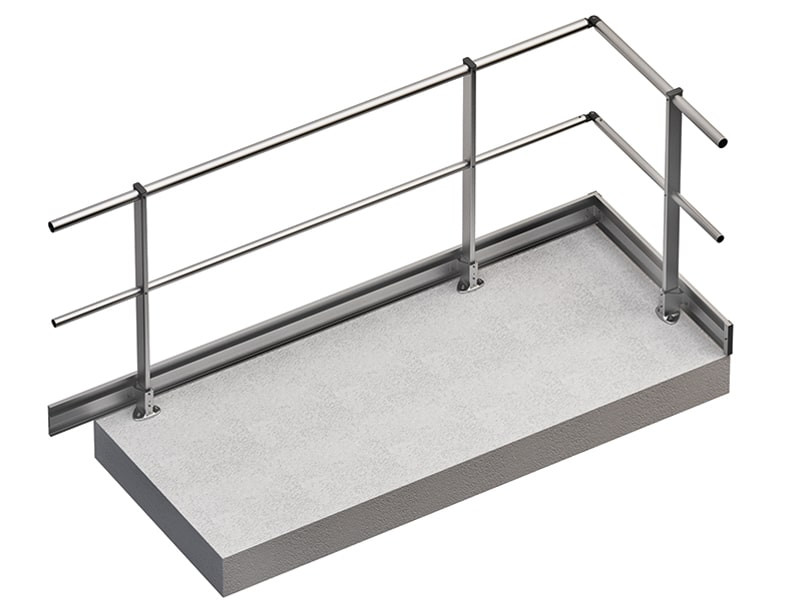

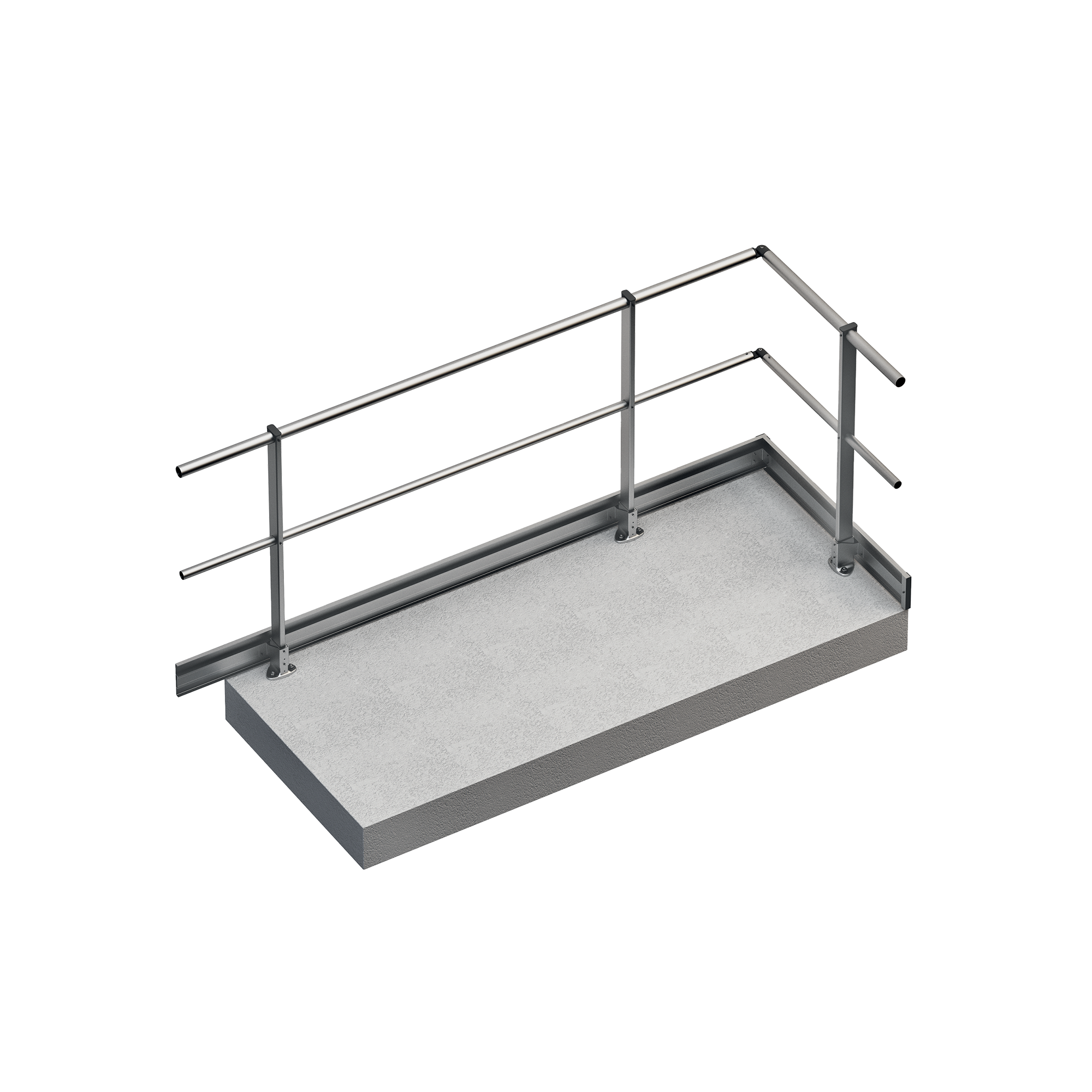

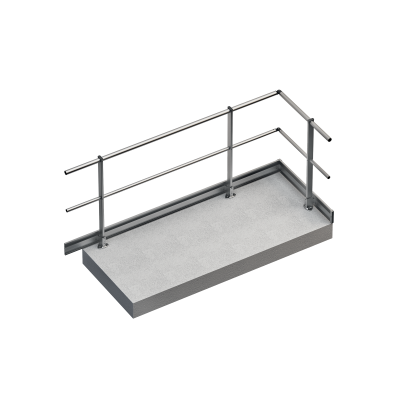

GUARD H, il parapetto a fissaggio orizzontale per strutture piane e solai.
Documentazione
-
Scheda Tecnica
-
Manuale d'installazione
CORRIMANI E CORRENTI INTERMEDI
| CODICE | descrizione | pz. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |

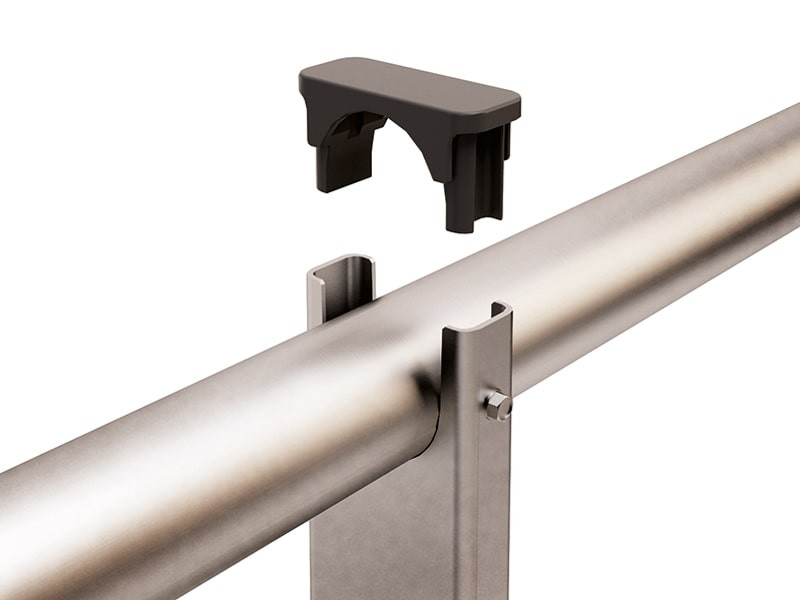

| RBGCAP | - | 1 |
MONTANTI
| CODICE | descrizione | pz. |
|---|---|---|
| RBGSUP110 | straight upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
| RBGSUP115I | inclined upright H = 1157 mm groove Ø45 mm | 1 |
| RBGSUP760WH | staight strut 760 mm high without intermediate rail | 1 |
ASSE FERMAPIEDI ED ACCESSORI
| CODICE | descrizione | pz. |
|---|---|---|

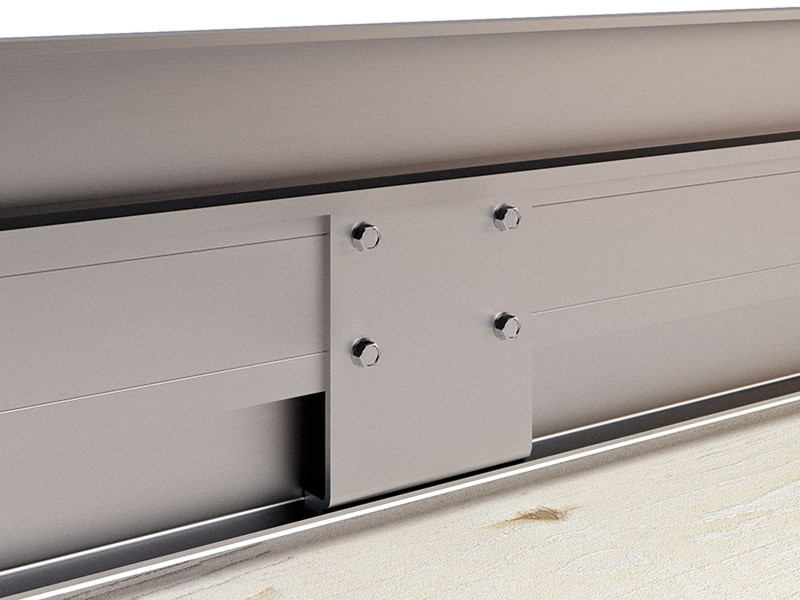

| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |

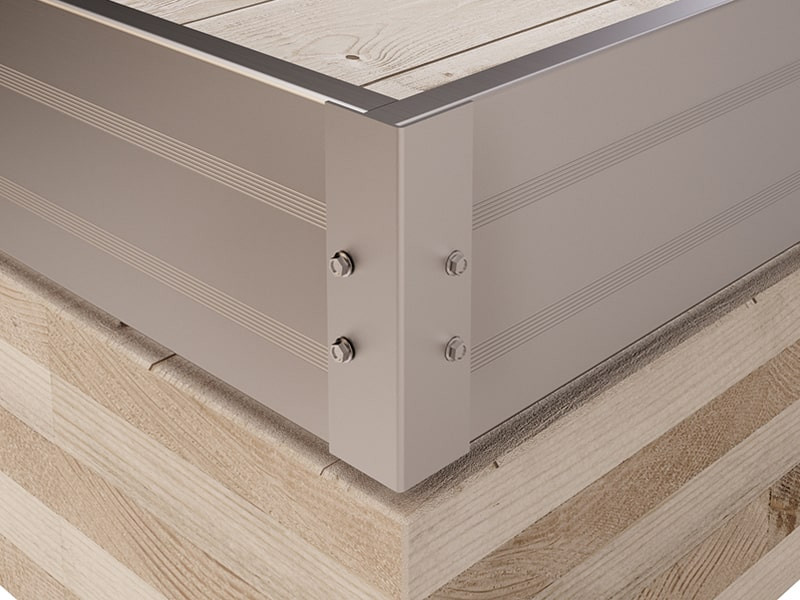

| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
| RBGTBH | support for toe board H = 150 mm | 1 |
BASI STANDARD
| CODICE | descrizione | pz. |
|---|---|---|

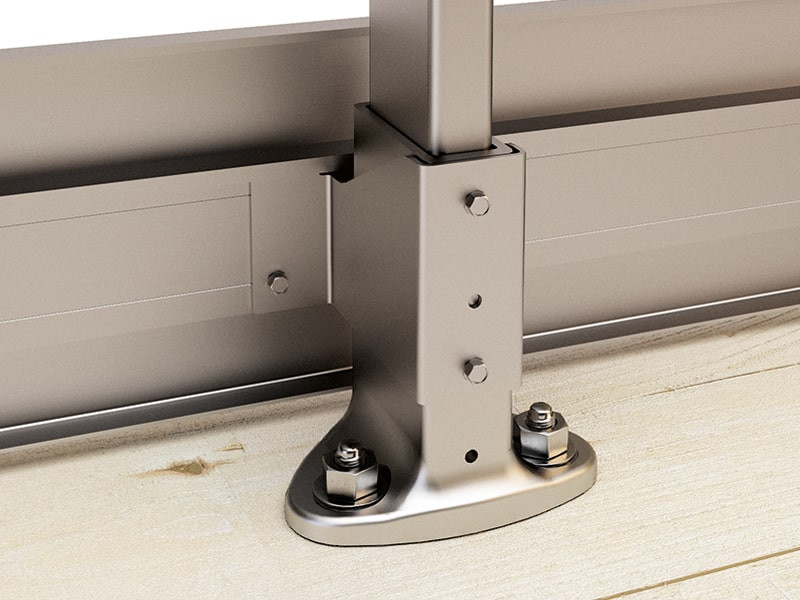

| RBGBASEH | bottom plate horizontal fastening painted grey GUARD H with grub screws included | 1 |
ACCESSORI
| CODICE | descrizione | pz. |
|---|---|---|

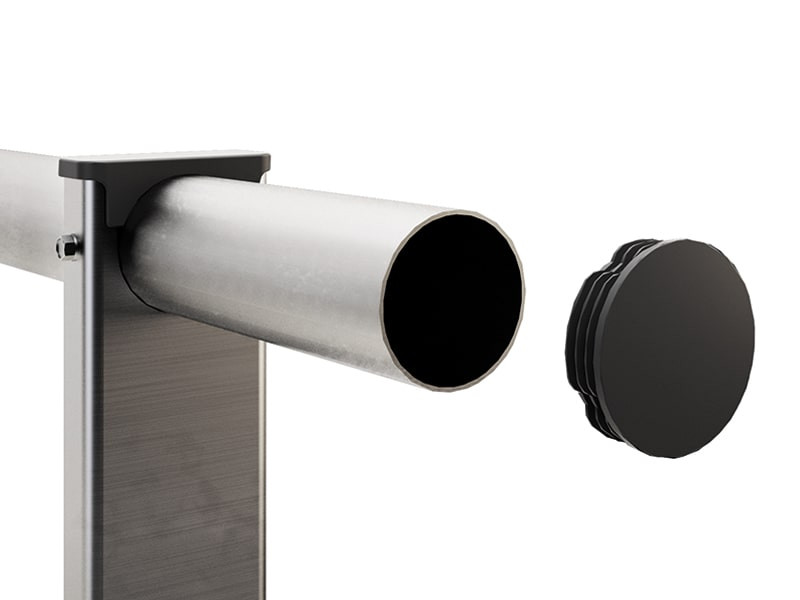

| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |

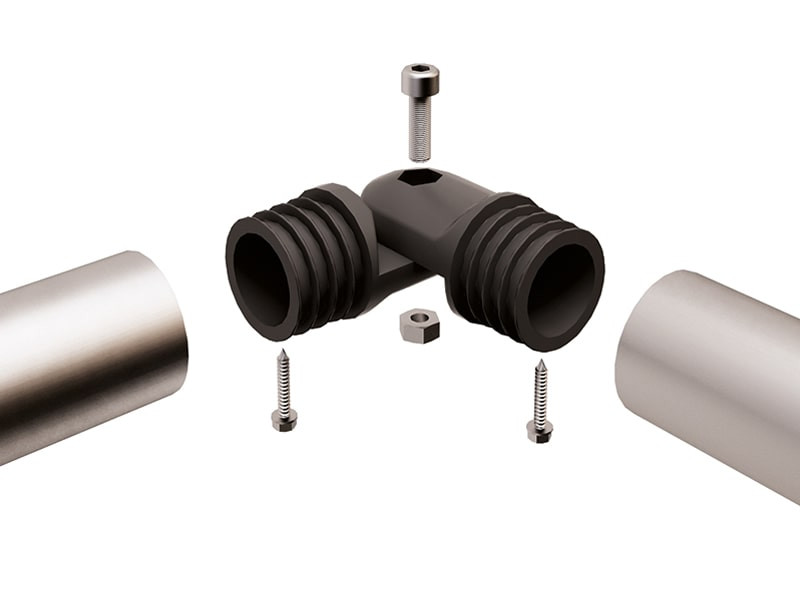

| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
VITI DI FISSAGGIO
| CODICE | descrizione | pz. |
|---|---|---|
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR810 | grub screw M8 x 10 (spare part) | 1 |
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
SISTEMA RECLINABILE
| CODICE | descrizione | pz. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
